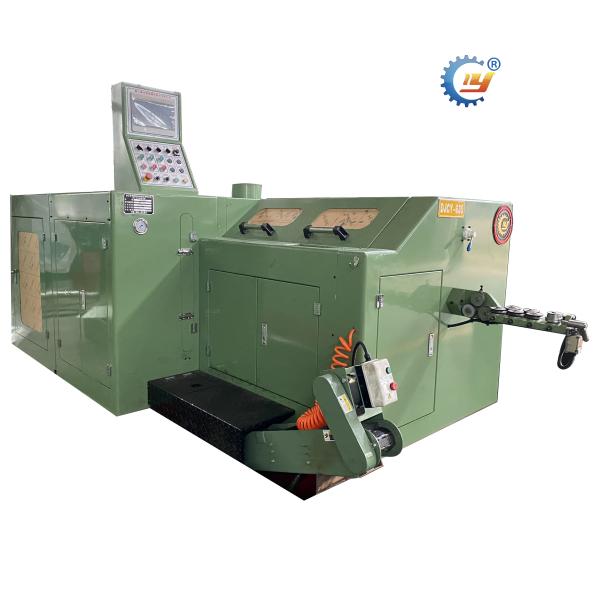

3 Station Screw 8mm Bolt Cold Forging Machine

Brand Name : BEYOND MACHINERY

Model Number : CY-63S

Certification : ISO9001 CE

Place of Origin : CHINA

MOQ : 1

Price : USD 18,888-38,888/set

Payment Terms : L/C, D/A, D/P, T/T, Western Union, MoneyGram

Supply Ability : 10 sets 15 days

Delivery Time : 30-45 DAYS

Packaging Details : Thin film

Name : 3 Die 3 Blow Cold Heading Nut Bolt Screw Making Machine

Condition : New

Voltage : 380V/440V Customized

Power : 11kw

Quality : Higher

Application : Bolt Screw Making

Contact Now

Automatic Multistage 3 Station Screw Making Cold Forging Bolt Making Machine

  1. Cold heading machine has excellent lubrication performance, high temperature resistance, wear resistance, rust resistance, high temperature oxidation resistance and stability.
  2. Improve the precision and cleanliness of the workpiece, prevent the mold from burning firmly, and meet the requirements of standard products and non-standard products. It can compete with normal temperature stainless steel workpieces.
  3. According to the theory of metal plastic deformation, a certain pressure is applied to the metal blank at normal temperature.
  4. Plastic deformation occurs in the mold cavity, and the cold heading machine is formed according to the prescribed shape and size.

Specifications

Model CY-63S
Forging station NO. 3
Max. Cutoff Dia. mm 8
Max. Blank Length mm 95
Avaliable Bolt Size. mm 3-6
Avaliable Bolt Length under Bolt head mm 8-65
Speed pcs/min 75-270
P.K.O Stroke mm 12
K.O Stroke mm 70
Die Space mm 60
Approx. Weight KG 7,800

3 Station Screw 8mm Bolt Cold Forging Machine

The Dimension of Standard Tooling
Cut-off Die mm φ30*45L
Punch Die mm φ40*90L
Main Die mm φ50*85L

Accessory

  1. Clamp plate with aerospace hard aluminum (Anodization)
  2. Phosphor-bronze ZCUSn10p1 ( JAPAN Standard)
  3. PLC adopts Japanese Mitsubishi Electric brand or Schneider CUNEIDER, Germany
  4. The whole machine bearing adopts pure imported brand, Japan NSK, Japan IKO, Germany STIEBER

Certifications

3 Station Screw 8mm Bolt Cold Forging Machine

About US

  1. DUJIANGYAN BEYOND MACHINERY MANUFACTURE CO.,LTD was established in 1993 and is one of the large-scale enterprises that manufacture screw machinery and equipment in China;
  2. Our company continuously introduces advanced technologies at home and abroad, has all kinds of outstanding talents in the same industry, and continuously improves its own research and development level;
  3. Our company mainly produces a series of digitally controlled screw machine products such as a die and two high-speed heading machine, thread rolling machine, multi-station, etc.

3 Station Screw 8mm Bolt Cold Forging Machine

Our service

  1. Rich experience and professional technical team
  2. Provide one-stop screw cold heading machine service, provide high-speed heading machine, thread rolling machine, multi-station machine
  3. The machine raw material is of good quality, using imported parts
  4. Long service life, Less maintenance

3 Station Screw 8mm Bolt Cold Forging Machine
